Yakaoma njanji Imwe Spindle 250L yakatevedzana
Product Configuration
Introduce
Hombe yakaoma njanji mhando yakakwira mutoro muchina, ine hombe dhayamita yakaderera kumhanya inorema kutema kugadzirisa kugona.

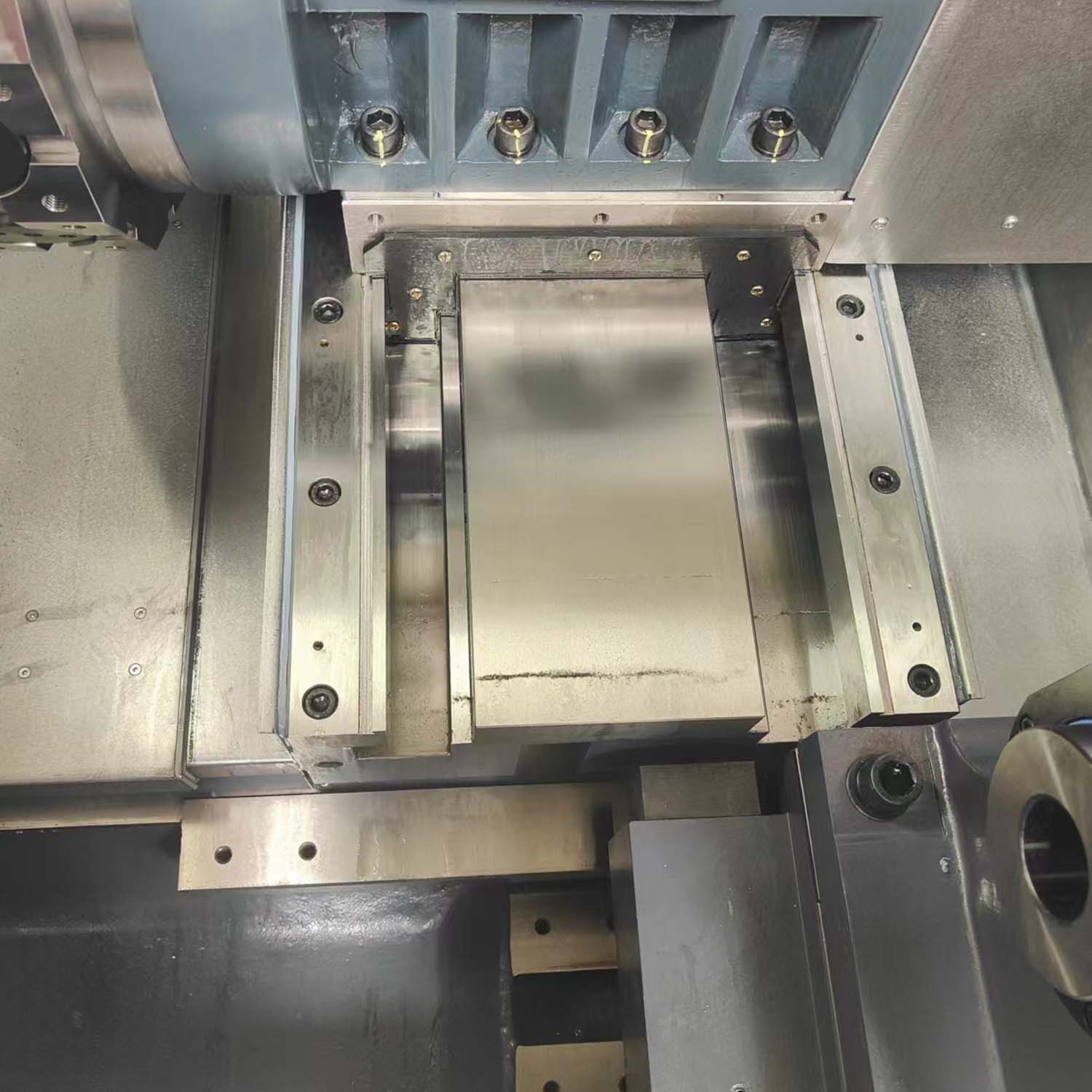

High rigidity square rail, iyo slide surface yakagadzirwa nenyanzvi yekugadzira purogiramu uye yakanyatsojeka yemafuta ekufambisa groove, uye kubudirira kwekufambisa kwakanakisisa.
Muviri wemuchina une 30-degree yakarerekera kumashure yakasanganiswa bhokisi chimiro, yakaderera nzvimbo yegiravhiti, uye yakagadzikana chaiyo.
Iyo tailstock muviri ine kusimba kwakasimba uye yakanaka vibration kudzvinyirira.
Iyo Z-axis saddle inogona kufambiswa nechirongwa, uye tailstock displacement inodzorwa otomatiki nechirongwa.
Zvidimbu zvehunyanzvi
| Item | Zita | Unit | 250L10 | 250LM10 | 250L15 | 250LM15 |
| Travel | Max.kutenderera kwepamusoro kwemubhedha | mm | Φ860 | Φ860 | Φ860 | Φ860 |
| Max.processing dhayamita | mm | Φ570 | Φ550 | Φ570 | Φ550 | |
| Max.kugadzirisa dhayamita pane mudziyo unobata | mm | Φ570 | Φ550 | Φ570 | Φ550 | |
| Max.processing urefu | mm | 930 | 900 | 1460 | 1460 | |
| Spindle Cylinder Chuck | Spindle mhino | type | A2-8 | A2-8 | A2-11 | A2-11 |
| Max.spindle speed | rpm | 3200 | 3200 | 2500 | 2500 | |
| Cylinder/chuck | lnch | 10″ | 10″ | 12″ | 12″ | |
| Spindle aperture | mm | Φ86 | Φ86 | Φ102 | Φ102 | |
| Bar dhayamita | mm | Φ76 | Φ76 | Φ90 | Φ90 | |
| Spindle mota simba | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |
| Motokari torque | Nm | 286/472 | 286/472 | 358/590 | 358/590 | |
| X/Z chikamu chekudyisa Parameters | X/Z axis muganhu wekufamba | mm | 300/980 | 280/965 | 300/1550 | 300/1560 |
| X/Z axis gwara renjanji hupamhi | / | Yakaoma njanji 80 | Yakaoma njanji 80 | Yakaoma njanji 80 | Yakaoma njanji 80 | |
| X/Z axis mota torque | Nm | 22 | 22 | 22 | 22 | |
| X/Z axis mota simba | kw | 3.0 | 3.0 | 3.0 | 3.0 | |
| Positioning kururama | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | |
| Dzokorora kurongeka kwechokwadi | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | |
| X/Z axis kukurumidza kufamba | m/min | 20/20 | 20/20 | 20/20 | 20/20 | |
| Servo drive Cutter/ Servo Cutter | Simba turret mhando | BMT65-12T | BMT65-12 | |||
| Simba turret simba | 5.5/7.5 | 5 | ||||
| Max.kumhanya kwechibatiso chemagetsi | 6000 | 5000 | ||||
| Outer dhayamita mudziyo mubati zvinotsanangurwa | mm | 32X32 | 25X25 | 32X32 | 25X25 | |
| Inner dhayamita mudziyo mubati zvinotsanangurwa | mm | Ф50 | Φ50 | Ф50 | Φ50 | |
| Pedyo nechishandiso chekuchinja nguva | sec | 0.2 | 0.2 | 0.2 | 0.38 | |
| Muswe stock | Hydraulic tailstock | / | Hydraulic tailstock | Hydraulic tailstock | Hydraulic tailstock | Hydraulic |
| TailstockMax.travel | mm | 700 | 680 | 1250 | 1240 | |
| Tailstock sleeve taper hole | type | Mohs 5# | Morse 5# | Mohs 5# | Mohs 5# | |
| Tailstock sleeve diameter | mm | Ф100 | Ф100 | Ф100 | Ф100 | |
| Sleeve kufamba | mm | 80 | 80 | 80 | 80 | |
| Mechanical Size | Zviyero zvakazara (kureba x upamhi x kureba) | mm | 4185*2300*2355 | 4185*2300*2355 | 4800*2300*2355 | 4800*2300*2355 |
| Huremu (huremu hunenge huripo) | kg | 6800 | 6800 | 7300 | 7500 | |
| Zvimwe | Kucheka fluid tank volume | L | 270 | 270 | 320 | 320 |
| Hydraulic unit box volume | L | 40 | 40 | 40 | 0.75 | |
| Kucheka pombi yemvura | kw | 0.75 | 1.5 | 40 | ||
| Hydraulic mafuta pombi mota simba | kw | 1.5 | 1.5 | 1.5 | ||
| Kuzora mafuta tangi volume | L | 2 | 2 | 2 | 2 | |
| Otomatiki lubrication pombi injini simba | W | 50 | 50 | 50 | 50 | |
| Simba repombi yemvura inotonhorera | W | 750 | 750 | 750 | 750 |
| Item | Zita | Unit | 250L20 | 250LM20 | 250L30 | 250LM30 |
| Travel | Max. kutenderera kwepamusoro kwemubhedha | mm | Φ840 | Φ840 | Φ820 | Φ820 |
| Max. processing dhayamita | mm | Φ570 | Φ550 | Φ570 | Φ550 | |
| Max. kugadzirisa dhayamita pane mudziyo unobata | mm | Φ570 | Φ550 | Φ570 | Φ550 | |
| Max. processing urefu | mm | 2090 | 2050 | 3200 | 3200 | |
| Spindle Cylinder Chuck | Spindle mhino | type | A2-11 | A2-11 | A2-15 | A2-15 |
| Max. spindle speed | rpm | 2500 | 2500 | 1500 | 1500 | |
| Cylinder/chuck | lnch | 12″ | 12″ | 15″ | 15″ | |
| Spindle aperture | mm | Φ102 | Φ102 | Φ132 | Φ132 | |
| Bar dhayamita | mm | Φ90 | Φ90 | Φ117 | Φ117 | |
| Spindle mota simba | kw | 15/18.5 | 15/18.5 | 15/18.5 | 15/18.5 | |
| Motokari torque | Nm | 358/590 | 358/590 | 550/680 | 550/680 | |
| X/Z chikamu chekudyisa Parameters | X/Z axis muganhu wekufamba | mm | 305/2100 | 320/2170 | 305/3300 | 320/3300 |
| X/Z axis gwara renjanji hupamhi | spes | Yakaoma njanji 80 | Yakaoma njanji 80 | Yakaoma njanji 80 | Yakaoma njanji 80 | |
| X/Z axis mota torque | Nm | 22 | 22 | 22 | 22 | |
| X/Z axis mota simba | kw | 3.0 | 3.0 | 3.0 | 3.0 | |
| Positioning kururama | mm | ±0.005 | ±0.005 | ±0.005 | ±0.005 | |
| Dzokorora kurongeka kwechokwadi | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 | |
| X/Z axis inokurumidza kufamba | m/min | 18/18 | 18/18 | 18/18 | 18/18 | |
| Servo drive Cutter | Simba turret mhando | pcs | BMT65 | BMT65-12 | ||
| Simba turret simba | KW | 5.0 | 5.0 | |||
| Max. kumhanya kwechibatiso chemagetsi | rpm | 5000 | 5000 | |||
| Outer dhayamita mudziyo mubati zvinotsanangurwa | mm | 32X32 | 25X25 | 32X32 | 25X25 | |
| Inner dhayamita mudziyo mubati zvinotsanangurwa | mm | Ф50 | Φ50 | Ф50 | Φ50 | |
| Pedyo nechishandiso chekuchinja nguva | sec | 0.2 | 0.2 | 0.15 | 0.2 | |
| Muswe stock | Hydraulic tailstock | / | Hydraulic | Hydraulic tailstock | Hydraulic tailstock | Hydraulic tailstock |
| Max. tailstock travel | mm | 1840 | 1840 | 3000 | 2980 | |
| Tailstock sleeve taper hole | type | Mohs 5# | Mohs 5# | Mohs 5# | Mohs 5# | |
| Tailstock sleeve diameter | mm | Ф100 | Ф100 | Ф100 | Ф100 | |
| Sleeve kufamba | mm | 80 | 80 | 80 | 80 | |
| Mechanical Size | Zviyero zvakazara (kureba x upamhi x kureba) approx. | mm | 5450*2300*2355 | 5450*2300*2355 | 6700*2300*2355 | 6700*2300*2355 |
| Huremu (approx. uremu) | kg | 7500 | 7800 | 12300 | 12500 | |
| Zvimwe | Kucheka fluid tank volume | L | 370 | 370 | 470 | 470 |
| Kucheka pombi yemvura | kw | 0.75 | 0.75 | |||
| Hydraulic unit box volume | L | 40 | 40 | 40 | 40 | |
| Hydraulic mafuta pombi mota simba | kw | 1.5 | 1.5 | 1.5 | 1.5 | |
| Kuzora mafuta tangi volume | L | 2 | 2 | 2 | 2 | |
| Otomatiki lubrication pombi injini simba | W | 50 | 50 | 50 | 50 | |
| Simba repombi yemvura inotonhorera | W | 750 | 750 | 750 | 750 |
| Item | Zita | Unit | 250LMY10 | 250LMY15 | 250LMY30 |
|
| Travel | Max. kutenderera kwepamusoro kwemubhedha | mm | Φ860 | Φ860 | Φ820 | |
| Max. processing dhayamita | mm | Φ540 | Φ540 | Φ540 | ||
| Max. kugadzirisa dhayamita pane mudziyo unobata | mm | Φ540 | Φ540 | Φ540 | ||
| Max. processing urefu | mm | 780 | 1340 | 3080 | ||
| Spindle Cylinder Chuck | Spindle mhino | type | A2-8 | A2-11 | A2-15 | |
| Max. spindle speed | rpm | 3200 | 2500 | 1500 | ||
| Cylinder/chuck | lnch | 10″ | 12″ | 15″ | ||
| Spindle aperture | mm | Φ86 | Φ102 | Φ132 | ||
| Bar dhayamita | mm | Φ76 | Φ90 | Φ117 | ||
| Spindle mota simba | kw | 15/18.5 | 15/18.5 | 15/18.5 | ||
| Motokari torque | Nm | 286/472 | 358/590 | 550/680 | ||
| X/Z chikamu chekudyisa Parameters | X/Z/Y axis muganhu wekufamba | mm | 310/880/120±60 | 310/1450/120±60 | 318/3180/120±60 | |
| X/Z axis gwara renjanji hupamhi | spes | Yakaoma njanji 80 | Yakaoma njanji 80 | Yakaoma njanji 80 | ||
| Y axis gwara renjanji yakatarwa | / | Roller njanji 35 | 滚柱线轨35 | Roller njanji 35 | ||
| X/Z axis mota torque | Nm | 22/22 | 22 | 22 | ||
| X/Z/Y axis mota simba | kw | 3.0/3.0/1.8 | 3.0/3.0/1.8 | 3.0/3.0/1.8 | ||
| Positioning kururama | mm | ±0.005 | ±0.005 | ±0.005 | ||
| Dzokorora kurongeka kwechokwadi | mm | ±0.003 | ±0.003 | ±0.003 | ||
| X/Z/Y axis inokurumidza kufamba | m/min | 20/20/8 | 20/20/8 | 18/18/8 | ||
| Servo drive Cutter | Simba turret mhando | pcs | BMT65-12T | BMT65-12 | BMT65-12 | |
| Simba turret simba | KW | 5.5/7.5 | 5.0 | 5.0 | ||
| Max. kumhanya kwechibatiso chemagetsi | rpm | 5000 | 5000 | 5000 | ||
| Outer dhayamita mudziyo inobata tsanangudzo | mm | 25X25 | 25X25 | 25X25 | ||
| Inner dhayamita mudziyo inobata tsanangudzo | mm | Φ50 | Φ50 | Φ50 | ||
| Pedyo nechishandiso chekuchinja nguva | sec | 0.38 | 0.38 | 0.2 | ||
| Muswe stock | Hydraulic tailstock | / | Hydraulic tailstock | 液压 | Hydraulic tailstock | |
| Max. tailstock travel | mm | 550 | 1100 | 2850 | ||
| Tailstock sleeve taper hole | type | Morse 5# | Mohs 5# | Mohs 5# | ||
| Tailstock sleeve diameter | mm | Ф100 | Ф100 | Ф100 | ||
| Sleeve kufamba | mm | 80 | 80 | 80 | ||
| Mechanical Size | Zviyero zvakazara (kureba x upamhi x kureba) | mm | 4185*2300*2355 | 4800*2300*2355 | 6700*2300*2355 | |
| Huremu (huremu hunenge huripo) | kg | 7200 | 7700 | 12800 | ||
| Zvimwe | Kucheka fluid tank volume | L | 270 | 320 | 470 | |
| Kucheka pombi yemvura | kw | 0.75 | 0.75 | 0.75 | ||
| Hydraulic unit box volume | L | 40L | 40 | 40L | ||
| Hydraulic mafuta pombi mota simba | kw | 1.5 | 1.5 | 1.5 | ||
| Kuzora mafuta tangi volume | L | 2 | 2 | 2 | ||
| Otomatiki lubrication pombi injini simba | W | 50 | 50 | 50 | ||
| Simba repombi yemvura inotonhorera | W | 750 | 750 | 750 |
Kugadzirisa Nhanganyaya
FANUC CNC
High Processing Performance
FANUC 0i-TF PLUS system ine simba repamusoro-soro rekugadzirisa tekinoroji uye nehungwaru servo control tekinoroji; yepamusoro-soro yekugadzirisa tekinoroji inopfupisa iyo sequential yekugadzirisa nguva yezviratidzo zvekunze zvinoenderana nekumhanyisa uye kudzikisira kwechiito mamiriro uye inowedzera kushandiswa kwe servo kugona, nekudaro ichidzikisa iyo yekugadzirisa chirongwa kutenderera nguva; yakangwara servo control inoreva servo control basa boka iro rinogona kuzvigadzirisa uye kugadzirisa munguva chaiyo semichina yekushandisa mamiriro akadai sekuremerwa uye tembiricha shanduko, kuwana yakakwirira-kumhanya uye yakakwirira-chaiyo kugadzirisa.
Kureruka Kwekushandisa
FANUC 0i-TF PLUS system ine hukuru-hukuru hwechirongwa chendangariro, CF kadhi inogona kushandiswa sechirongwa chekurangarira, USB chirongwa chinogona kumhanyiswa nekudzvanya kamwe, CNC-QSSR basa rinobatsira muchina maturusi nekukurumidza uye nyore kupinza marobhoti, uye sarudzo yeIHMI. basa rinopa rutsigiro rwakakwana rwebasa panzvimbo yekugadzira, uye inopa ruzivo rwechishandiso rwakabatanidzwa manejimendi, kugadzirisa nguva yekufanotaura, inopindirana dialogue programming, mechanical kudhumhana kudzivirira, kugadzirisa kuunganidza data, kuchengetedza manejimendi uye mamwe mabasa anodiwa kune yega yega maitiro mu "kuronga" , "kugadzirisa" uye "kuvandudza".
High Operation Rate
Iyo IOlinki uye FSSB yeFANUC Oi-TF PLUS ine hupfumi hwekuona kukanganisa mabasa, ayo anogona kuona kutadza kwesimba kweiyo I/O module kana servo amplifier nenzvimbo yekudzima tambo yekutaurirana. Mukuwedzera, ini / Olinki inokwanisa kuona kuburitsa kupfupi kwedunhu rega rega DO poindi; uye zvakare, iyo yekukanganisa yekuongorora basa inogona kuwana akasiyana ekuongorora ruzivo paCNC skrini inobatsira kutonga mamiriro ehurongwa kana alarm yaitika, ichibatsira vashandisi kukurumidza kugadzirisa nzvimbo ine dambudziko.
THK Bhora Screw
·C3 giredhi, uchishandisa yakakwirira-chaiyo bhora sikuruu, ine nati pre-kurodha uye screw pre-tensioning kurapa kufanobvisa backlash uye tembiricha inokwira elongation, ichiratidza yakanakisa chinzvimbo uye kudzokorora chokwadi.
· Servo mota yakananga dhiraivha kudzikisa backlash kukanganisa.
THK Roller Linear Guide
·P giredhi yekupedzisira-yakanyanya kuomarara SRG chaiyo giredhi, mutsara giredhi zero clearance, arc kucheka, bevel kucheka, kuumbwa kwepasi kwakafanana. Inokodzera kumhanyisa-kumhanya, ichidzikisa zvakanyanya simba rekutyaira rinodiwa kumaturusi emuchina.
·Kukunguruka pachinzvimbo chekutsvedza, kurasika kudiki kwekukweshana, kudavidza kwakasimba, kurongeka kwepamusoro. Iyo inogona kutakura mutoro munzira inofamba panguva imwe chete, uye iyo track yekubata kumeso ichiri mu-multi-point kuonana panguva yemutoro, uye kuomarara kwekucheka hakuzoderedzwa.
·Iri nyore kuunganidza, kuchinjika kwakasimba, uye chimiro chiri nyore chekuzora; mari yekupfeka idiki kwazvo uye hupenyu hwebasa hwakareba.
SKF Bearing/Oiling Machine
·Automatic lubricator inosangana nezvinodiwa zveakasiyana maapplication, akakodzera kune akasiyana mamiriro ekushanda, zvigadzirwa zvakavimbika, kushandiswa kunoshanduka.
·Sangana nezvinodiwa zvekubereka lubrication mukupisa kwakanyanya, vibration yakasimba uye nharaunda ine njodzi.
Imwe neimwe nzvimbo yekuzora inoshandisa volumetric proportional distributor kudzora huwandu hwekuzora, uye muchina unogona kudzorwa nePLC kuti upe mafuta nenzira kwayo.
